product描述
|
类型 |
参数 |
|
接口 |

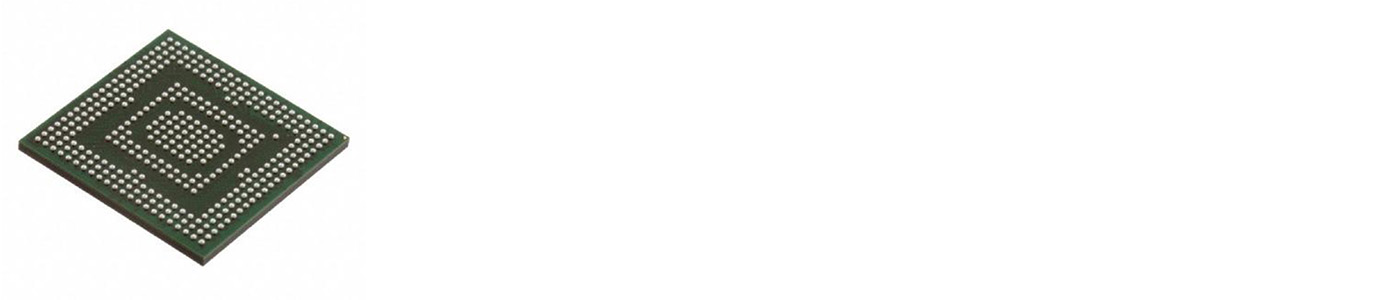

eMMC+LPDDR4XFBGA254) |
|
NAND Flash |
TLC |
|
容量 |
32GB+32Gb/64GB+32Gb |
|
工作电压 |
eMMC:1.2V 1.8V and 3.3v Low power DDR4/4X:DD1=1.8V; VDD2=VDDCA=VDDQ=12V VDD1=1.8V; VDD2=1.1V;VDDQ=1.1Vor 0.6V |
|
MTBF(h) |
1 million hours MTBF |
|
工作温度 |
-20°C~+85°C |
|
存储温度 |
-40~+85℃℃ |
|
冲击测试 |
1500G |
|
非工作时抗震测试 |
20G Peak (10-2000Hz) |
|
尺寸 |
13mm(L)*11.5mm(w)*12mm(H) |
Tips：
* For Flash media devices, 1 megabyte = 1 million bytes; 1 gigabyte = 1 billion bytes. Actual available capacity may vary, and some of the listed capacity is used for formatting and is not available for data storage.
* Actual performance may vary depending on file format and system specifications。
* All product specifications may vary by region, and we sincerely recommend that you confirm the specifications of the products currently on sale with your local dealer or retailer.
* Actual product images may vary from the images shown, and all specifications are subject to change without notice and are subject to actual released products.
* Microsoft®, Windows 7, Windows 8, and Windows® 10 are trademarks or registered trademarks of Microsoft Corporation in the U.S. and/or other countries. All other brands and product names are trademarks, registered trademarks, or service marks of their respective holders.
